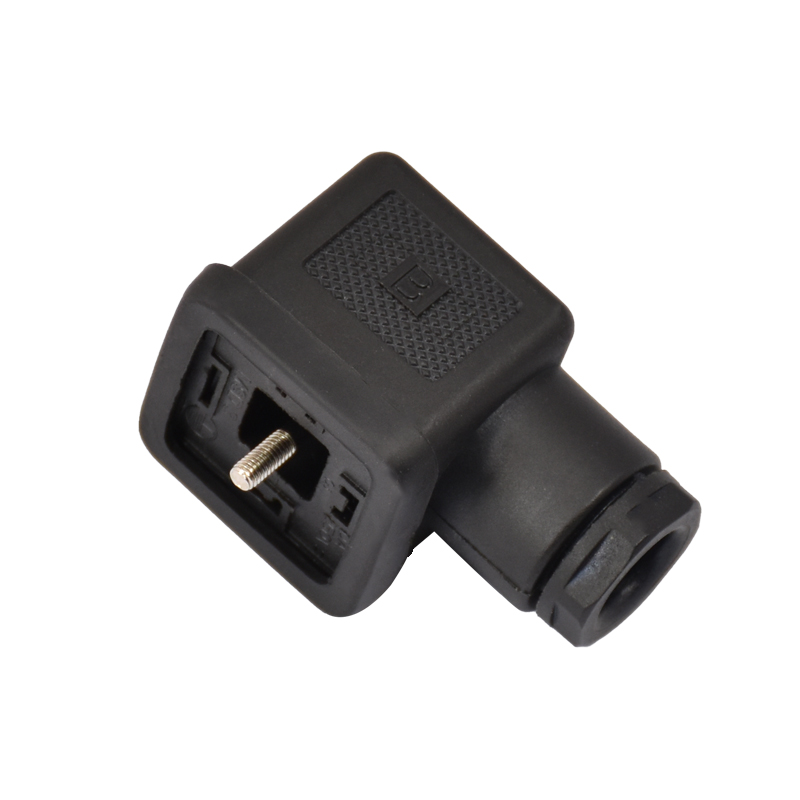

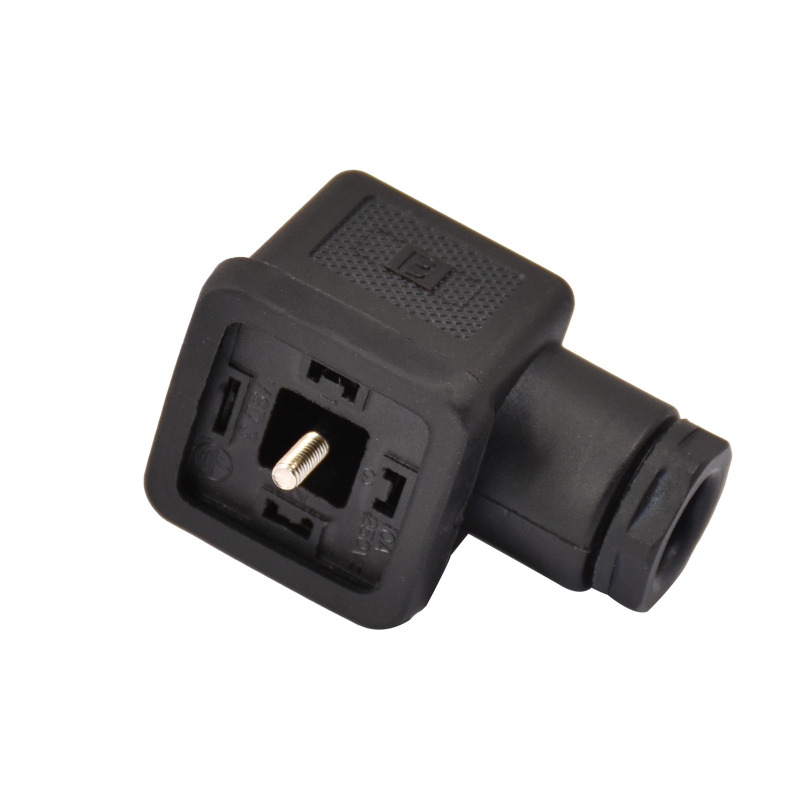

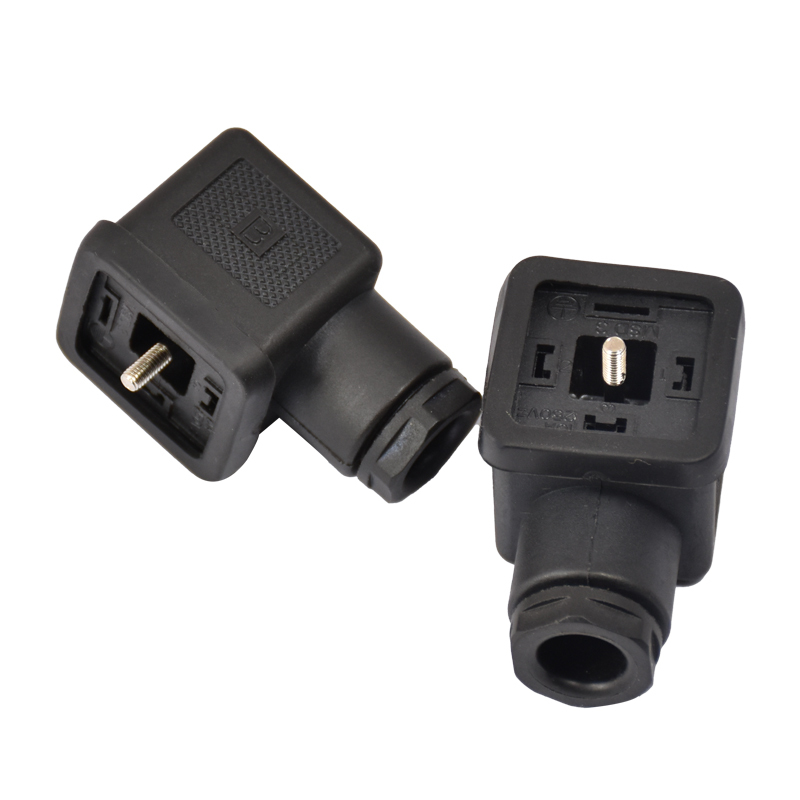

DIN43650 A/B/C Type Waterproof Molded assembly Cable Central Screw Solenoid Valve Connector
Valve Electrical Data:
Valve Electrical Data:
Rated current: 8A / 10A
Rated voltag: 24V / 250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ
Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm or 11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Waterproof: O-ring FKM
Connector over-mold: TPU
Material of female connetor contact: PS with silver plating
Connector screw: Shell with Zn plating
Connectors come in variours"Forms"depending on the configuration of pins and dimensions,the forms are available liste below
* Din Form A
* Din Form B
* Din Form C
| General Information | |||
| Product name | Waterproof Din 43650 connector | Gender | Male and Female |

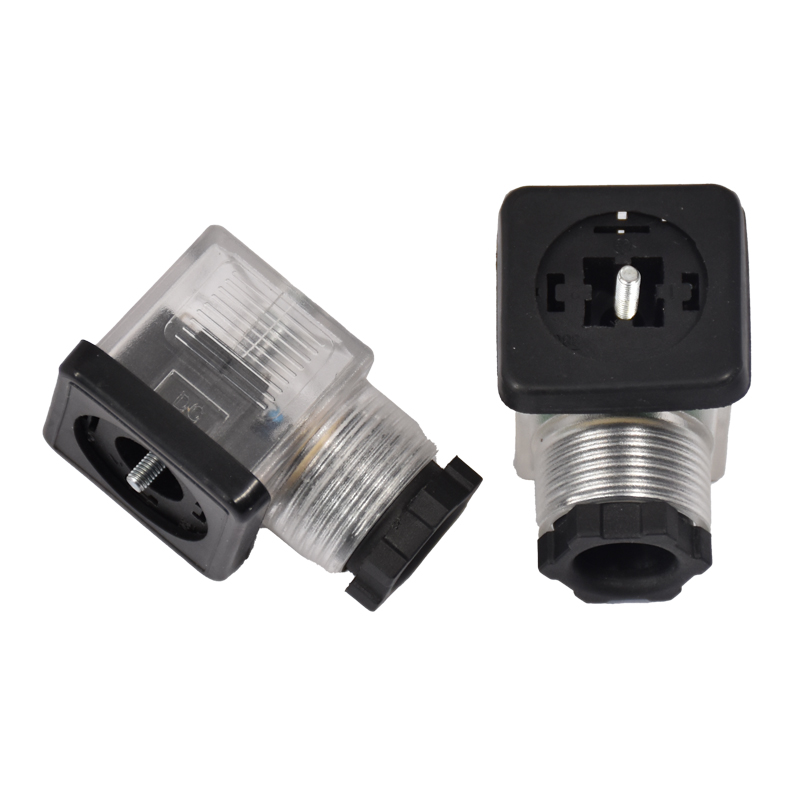

| Code | A B C | Color | Black and transparent |
| Hosing material | PA | Contact material | Cusn (bronze) |
| Number of contacts | 2+PE/3+PE | Connector screw | Shell with Zn plating |
| Rated Voltage | 250V | Rated Current | 10A |
| Shielding | yes | Mating circles | >500 mating cycles |
| Temperature Range | -30°C~+120°C | Contact resistance | ≤15 mΩ |
| Certificate | ISO9001/CE/ROHS | Protection level | IP65 Waterproof |
1. Are you a factory?
FM: Yes, we are a 100% factory. Fremi Technology Co., Ltd. was established in 2010, with a factory scale of 10000 + square meters and 300 employees.
2.Can you produce customized product orders? OEM or ODM orders?
FM: Sure. With 12+ years of OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.
3.Why choose Fremi? What makes your company a reliable supplier?
FM: since its establishment, ylinkworld has been committed to becoming the world's leading manufacturer of industrial connections. We have 20 injection molding machines, 80 CNC machines, 10 production lines and a series of testing equipment.
4.What certificates do your products have?
Our products are certified with UL/CE/IP67/IP68/IP69K/ROHS/REACH/ISO9001...,Our main markets include EU, North America, East Asia etc.
5.What's your regular production time after order is placed and confirmed?
FM: Generally speaking, the standard product lasts for 3 ~ 5 days. If the product is customized, the delivery period is about 10 ~ 12 days. If your project requires new tooling, the lead time depends on the complexity of the customized product.
6.What's your strength in logistics?
FM: international express, air or sea, we can provide you with cost saving suggestions. Transportation cost savings mean lower procurement costs. If you want to use our freight forwarder, China Import and export customs clearance can be managed by us. Enjoy your one-stop shopping experience at FREMI!
