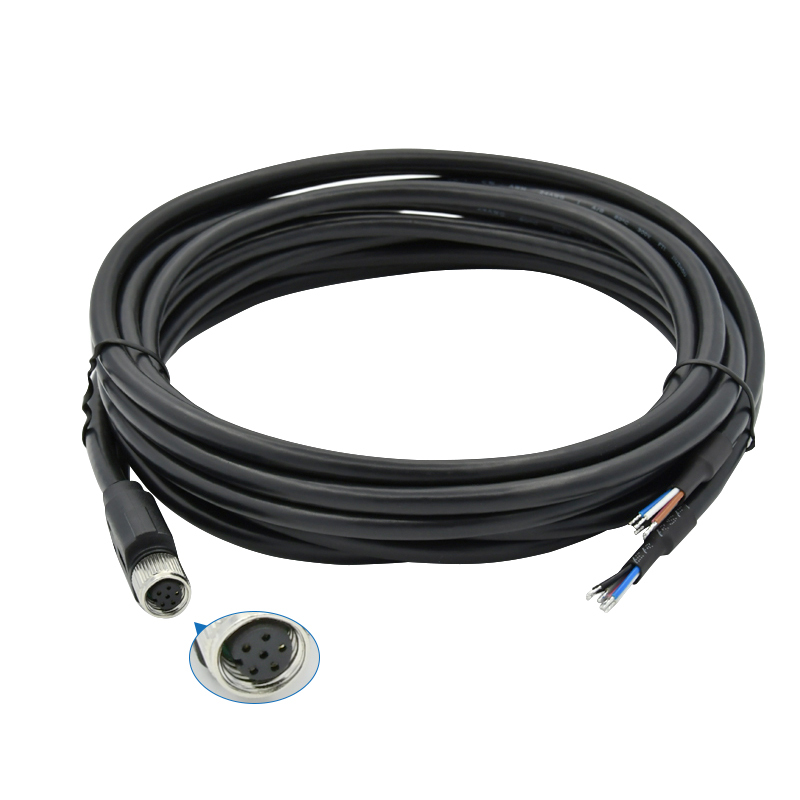

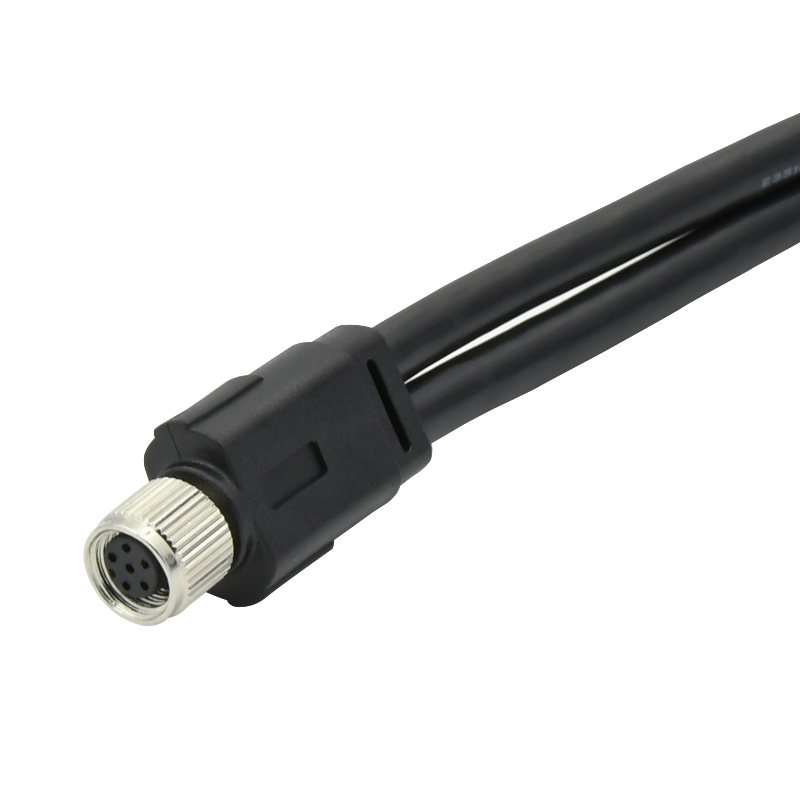

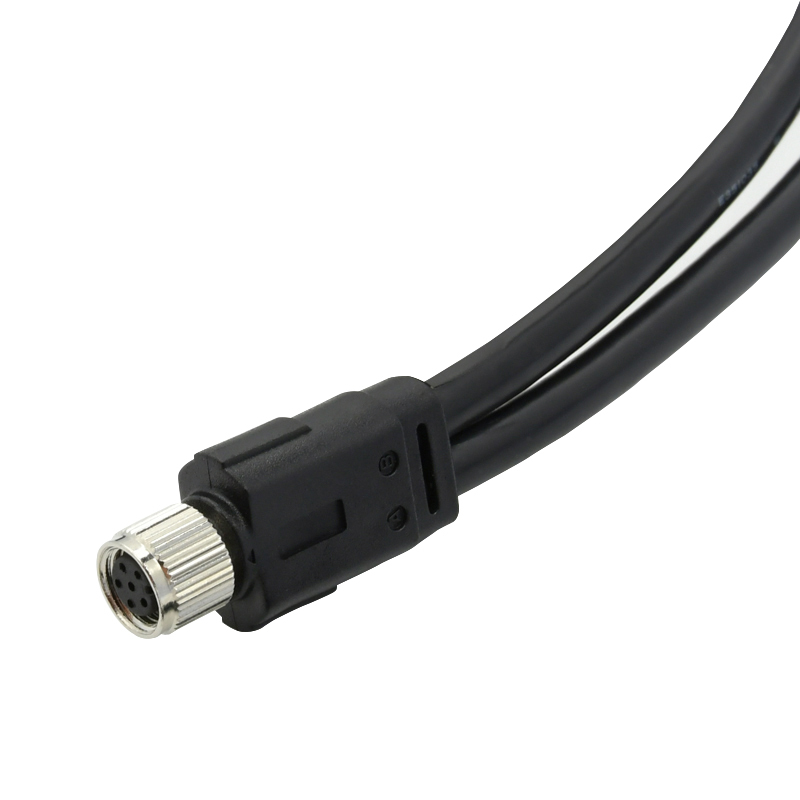

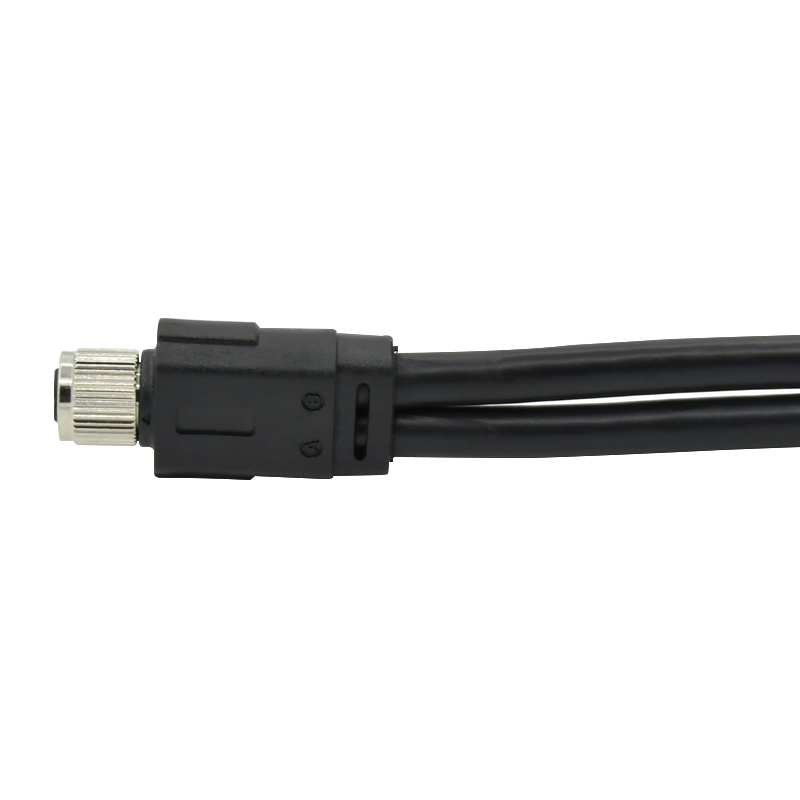

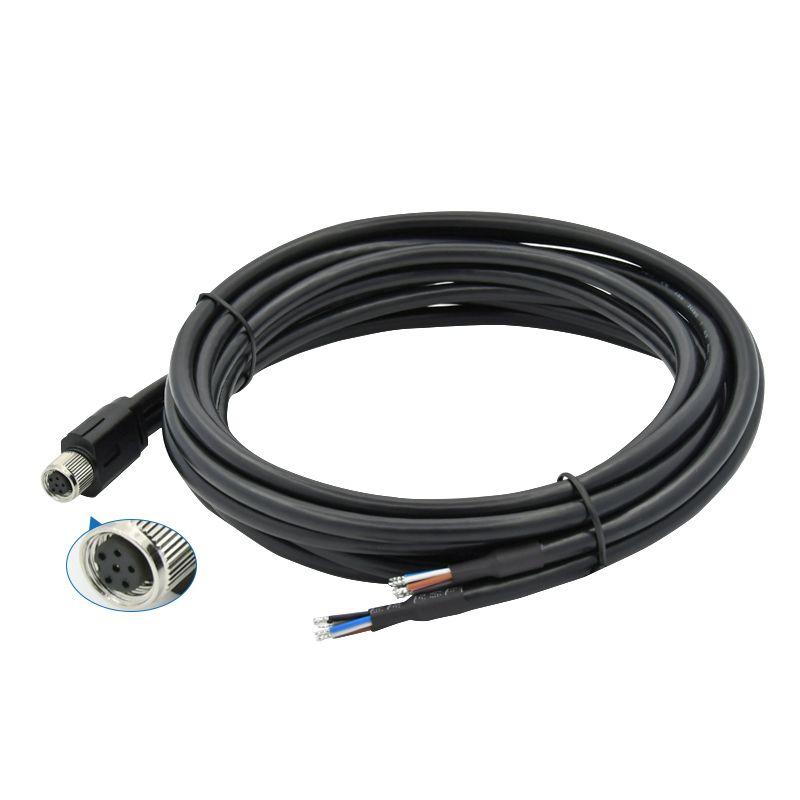

m8 m12 y splitter 1 to 2 ip68 straight male female waterproof sensor 3 4 5 6 8 pin molding type cable

m8 m12 y splitter 1 to 2 ip68 straight male female waterproof sensor 3 4 5 6 8 pin molding type cable

Name: m8 m12 y splitter 1 to 2 ip68 straight male female waterproof sensor 3 4 5 6 8 pin molding type cabl
Brand: fremibs.com
SKU: 00123
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 00123

M12 sensor plastic cable IP67 A code male female 2 3 4 6 8 12 pin straight waterproof connector
M12 is designed for the device connection mostly for sensor/actuator boxes,field- bus modules and industrial controllers.

GenderMale/Female

CodeA, B, C, D, S, T,L,K

Number of Pin2 3 4 5 8 12 17 pin

TypeM12 Cable Connector

StandardIEC 61076-2-101

IP ratingIP68/IP67

Contact platingAu(Gold)

Operate temperatureFlexible: -25°C ~ +80°C, Static: -40°C ~ +80°C

Request Quote Contact Us

Description Review

Description

m8 m12 y splitter 1 to 2 ip68 straight male female waterproof sensor 3 4 5 6 8 pin molding type cable
Waterproof connector includes a full range of A, B, C, D, S, T and X-coded

1.Shielded is available
2.IP67/IP68, RoHS, certification
3.Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17
4.Can be customized



· X-coded connectors support higher bandwidth needs of up to 10Gb/s

· A,B,D,X,S,T coding available

· Easily installable connector system

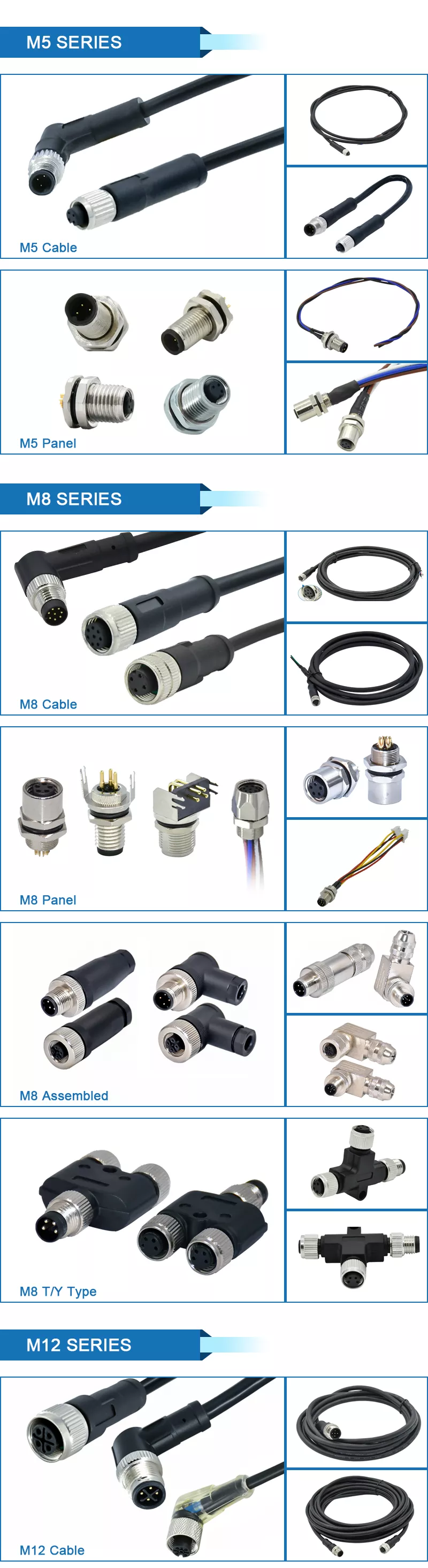

· Connector ranges include male and female connectors in 2, 3, 4, 5, 8, 12 and 17 positions, and Y connectors

· Environment protection IP67 and IP68

· Available with silver-plated contacts for higher conductivity

· Alternative mount arrangements for solder cup or PCB

· Shield reliable

· Quick and secure connection

· Backwards compatible

● Reference standard: IEC 61076-2-101
● Termination: Soldering
● Rated temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
● Insulation resistance: ≥100MΩ
● Contact resistance: ≤5mΩ
● Over-molding: TPU
● Contact carrier: TPU+GF
● Screw nut: Brass, CNC, Nickel-plated
● Contact: Male: Brass, Female: Phosphor bronze
● Contacts plating: Au(Gold)
● O-ring: FKM, Silicon
● Protection degree: IP67, IP68
● Pollution degree: 3
● Wire length options: 0.5, 1, 2, 3, 5 meter or as your requests
● 360° Shielded or Un-Shielded versions are available
● Optional cable material: PVC, PUR, LSZH, Ethernet, Profinet
● IP67, IP68, IP69K and UL approvals
● All the connectors can be customized, please ontact us to get what you need~
