Description

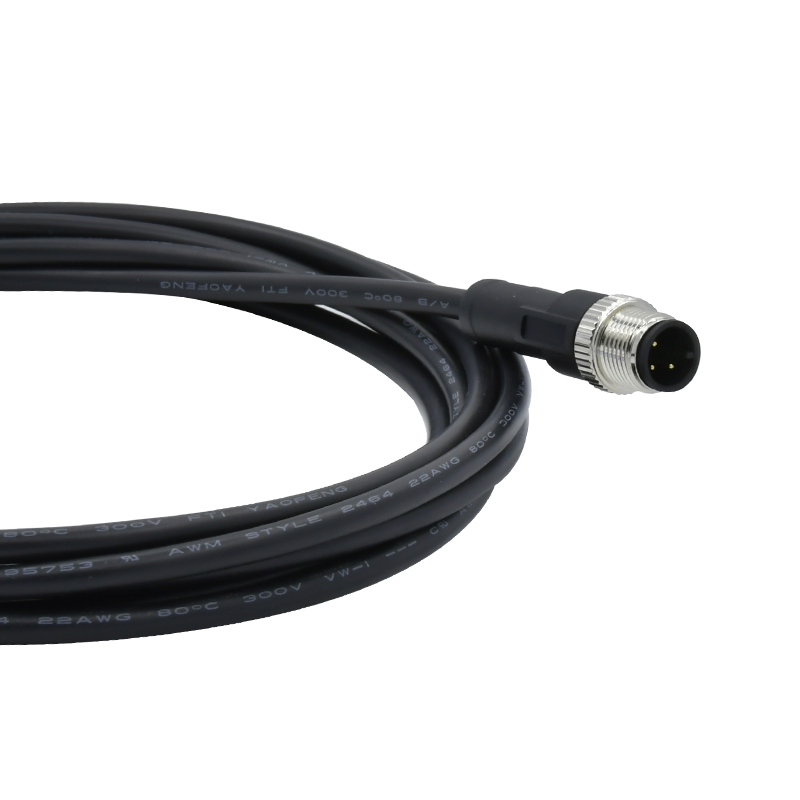

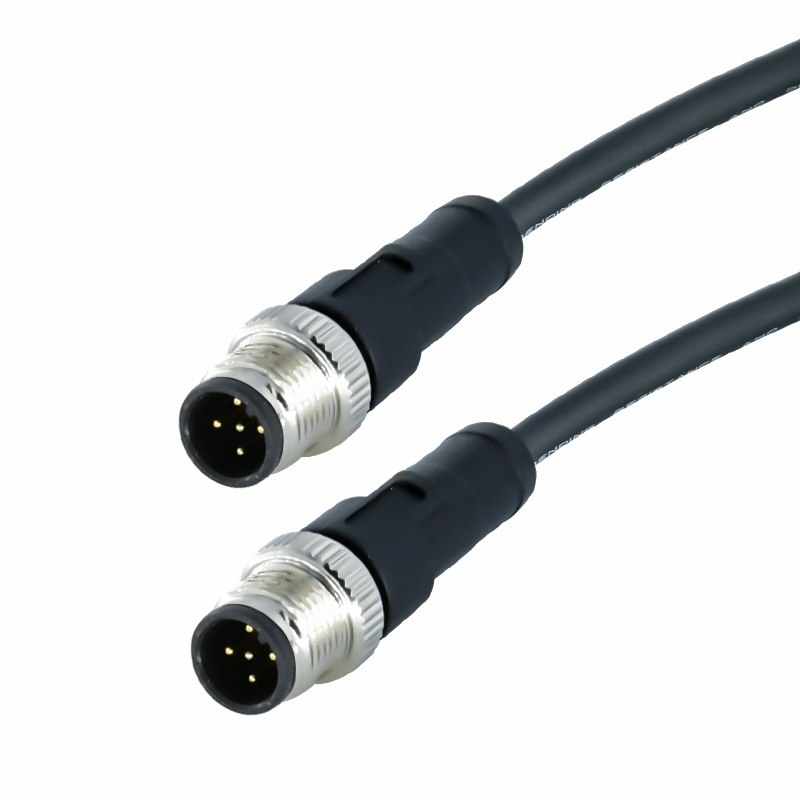

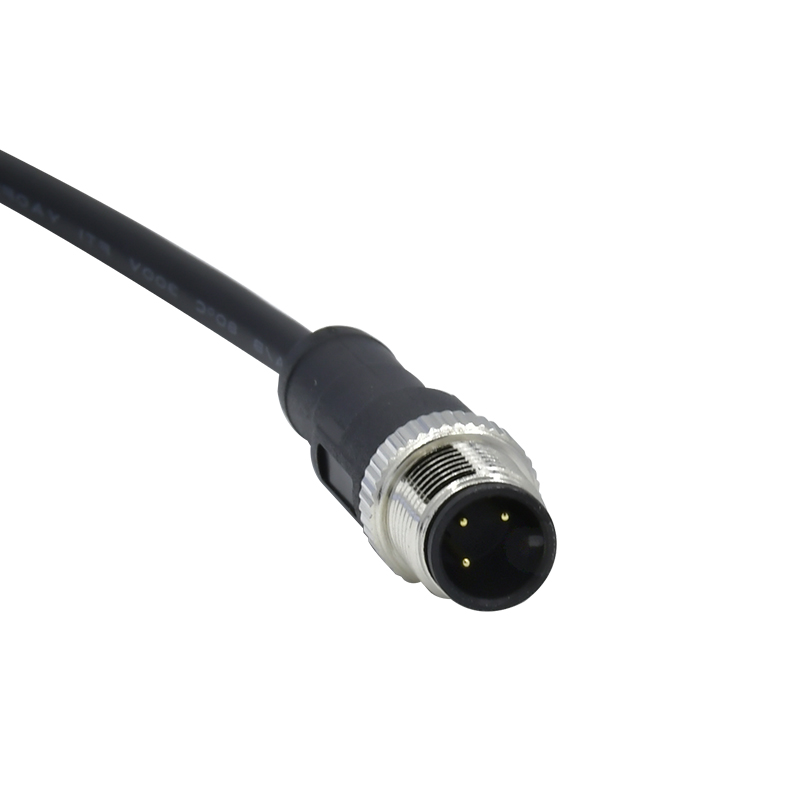

Industrial M12 plastic female plug connector auto m12 3 4 5 6 8 12 17pin with custom end of free cable
Description: Product Name:M12 Seriesconnector Product Pin:3pin 4pin 5pin 6pin 8pin 12pin 17pin Type:Molded, Panel mount,Assembly,T/Y adapter and Cover
Length:5M/10M/15M or customAuthentication：CE，RoHS
waterproof：IP67/IP68
Industrial M12 plastic female plug connector auto m12 3 4 5 6 8 12 17pin with custom end of free cable
The M8/M12 series provides a wide range of metric M8/m12 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Description: Product Name:M12 Seriesconnector Product Pin:3pin 4pin 5pin 6pin 8pin 12pin 17pin Type:Molded, Panel mount,Assembly,T/Y adapter and Cover
Length:5M/10M/15M or customAuthentication：CE，RoHS
waterproof：IP67/IP68
|

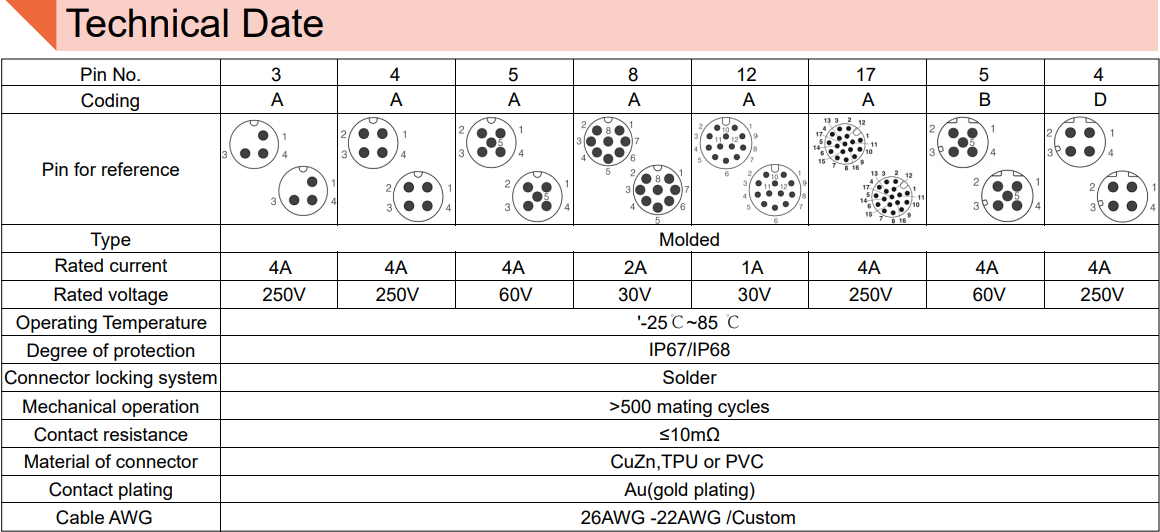

Pin No.
|
3 | 4 | 5 | 8 | 12 | 17 | 5 | 4 |
|
Coding
|
A | A | A | A | A | A | B | D |
|
Rated current
|
4A | 4A | 4A | 2A | 1A | 4A | 4A | 4A |
|
Rated voltage
|
250V | 250V | 60V | 30V | 30V | 250V | 60V | 250V |
