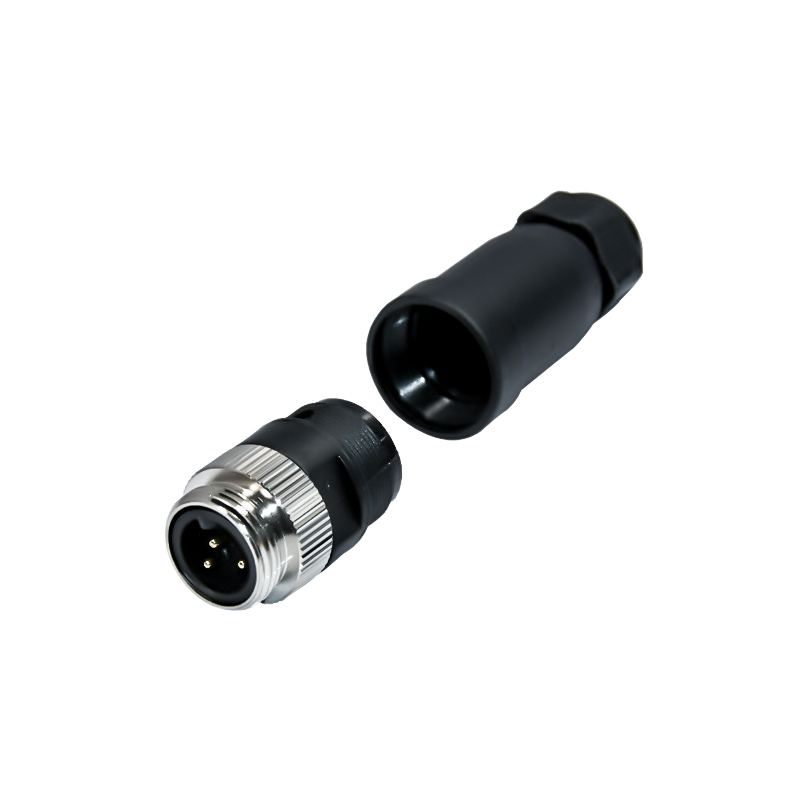

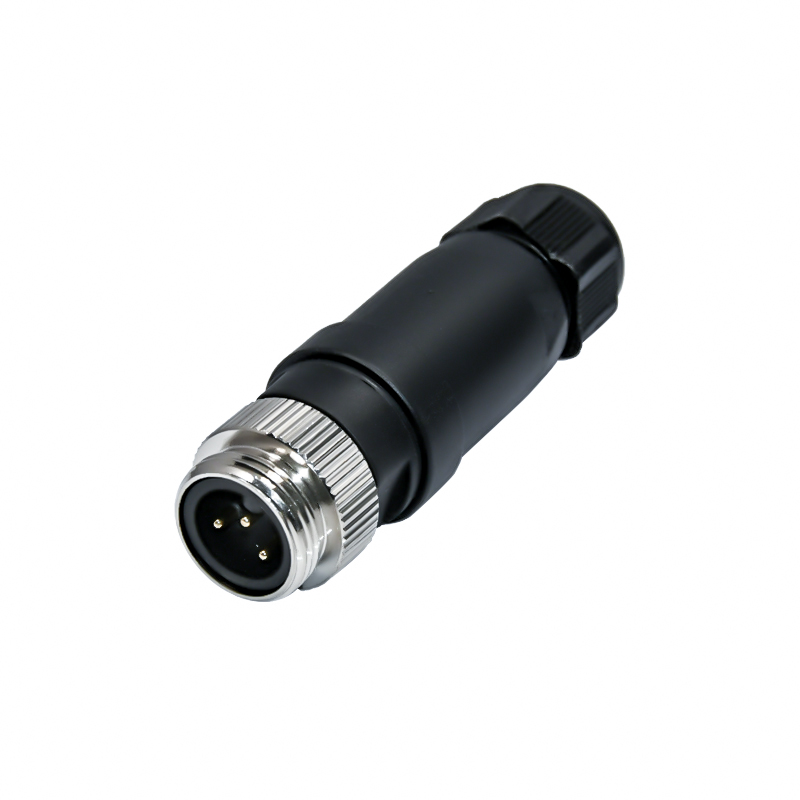

IP67 waterproof 7/8 screw plastic plug field assembly connector
The 7/8 connector is a high-frequency connector with the following features:
1. Wide frequency range: The 7/8 connector can support a frequency range of up to 6 GHz, making it suitable for various high-frequency applications.
2. High power transmission: This connector can transmit up to 500 watts of power, making it suitable for most high-power RF applications.
3. Good torque stability: The connector has excellent torque characteristics, making it more stable during use and ensuring signal transmission stability.
4. Strong durability: The 7/8 connector uses high-quality materials, making it more durable and extending the life of the product.
5. Safe and reliable: The connector has a high degree of contact force and waterproof performance, ensuring the safety and reliability of the connector.
6. Easy installation: The 7/8 connector uses a quick installation design, improving installation efficiency and making it easy to operate.
7. Wide range of applications: This connector is widely used in wireless networks, broadcasting and television, radar, satellite communications, and other high-frequency fields, making it the most widely used type of high-frequency connector.
Overall, the 7/8 connector is a high-quality, reliable, and widely applicable high-frequency connector that is essential for many critical applications.
Generally Description:
Connector Series: 7/8
Standard: IEC 61076-2-101
Coding: A Pins: 3 / 4 / 5 6pins

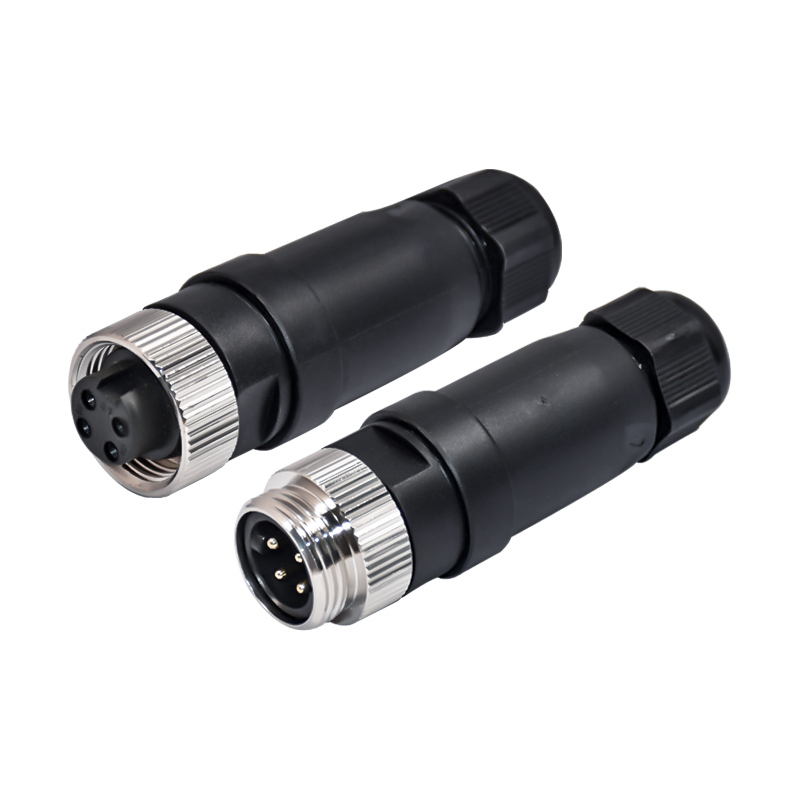

Gender:Male&Female Connector
Design: Panel mount Connector Locking
System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -25°C~+85°C
Material: Connector Body: PA66+GF Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Product Features
- High temperature resistance: connectors can operate in extreme high temperature environments, up to 200ºC.
- Vibration resistance: With a compact and lightweight design, this connector can withstand large vibrations and shocks.
- Waterproof and dustproof: The connector's housing is sealed to effectively prevent water and dust from entering and ensuring the stability and reliability of the connector.
- Multiple models: connectors have various models and specifications to meet different requirements.
| Standard | IEC 61076-2-101 |
| Termination | Solder PCB |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Ambient temperature(operation) | -25°C~+85°C |
| Mechanical operation | >100 mating cycles |
| Rated voltage | 30V~250V |
| Rated impulse voltage | 500V |
| Rated current(40°C) | 1.5A~4A |
| Contact resistance | ≥100MΩ |
Brand Introduction:
FREMI M5/M8/M12/M16/M23 Connector System fills the needs for sensor connection in industrial machinery and factory automation. The M5/M8/M12/M16/M23 standard is also ideal for applications outside of the traditional industries where a compact, reliable connection system with environmental protection is required. The M5/M8/M12/M16/M23 connector system provides a future-proof interface that supports higher-bandwidth needs, meeting the requirements of up to 10GB/s. FREMI's M5/M8/M12/M16/M23 connector portfolio includes a full range of A, B, C, D, S, T and X-coded Y-coded(up to 10 Gigabit/s) versions to serve various application needs.
