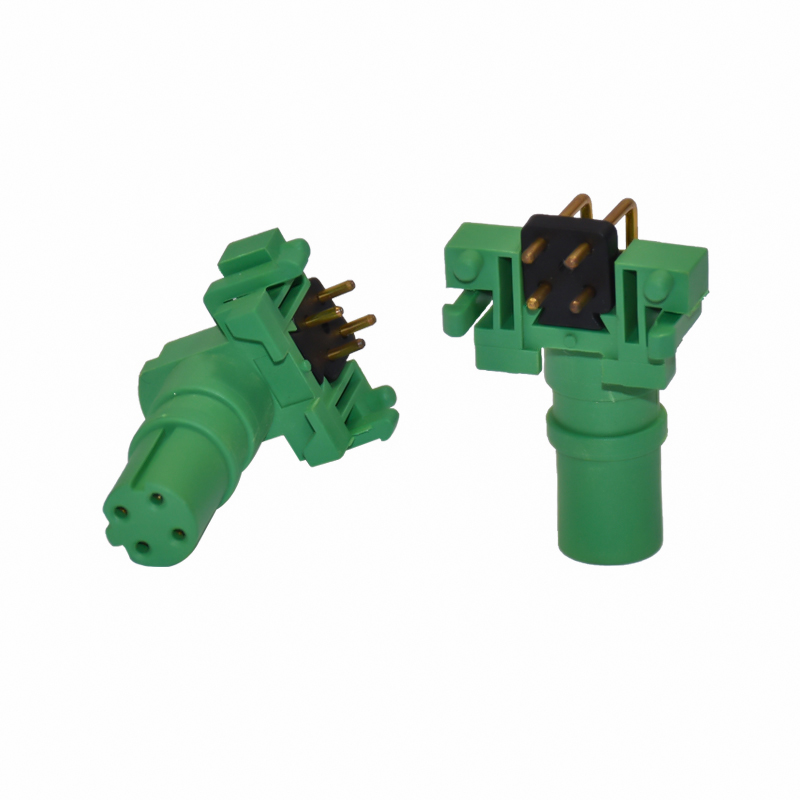

M12 17 Pin 2 3 4 5 6 8 12 17 pin 90 degree pcb solder rear front A code male female flange circular wall Panel Mount socket Connector
M12 circular connector conforms to IEC 61076-2-101,IEC 61076-2-109,IEC 61076-2-111,IEC 61076-2-113 standard. It provides reliable and stable connection with light weight and small profile, quick and easy to use.
Material Data
Housing color:Nickel
Housing material:copper alloy
Insulator color:Black
Insulator material:LCP GF
Plating signal contact (mating area):Gold over nickel
Signal contact material:Copper alloyTechnical Data
| Standard | IEC 61076-2-101 |
| Termination | Solder PCB |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Ambient temperature(operation) | -25°C~+85°C |
| Mechanical operation | >100 mating cycles |
| Rated voltage | 30V~250V |
| Rated impulse voltage | 500V |
| Rated current(40°C) | 1.5A~4A |
| Contact resistance | ≥100MΩ |
Brand Introduction:
FREMI M5/M8/M12/M16/M23 Connector System fills the needs for sensor connection in industrial machinery and factory automation. The M5/M8/M12/M16/M23 standard is also ideal for applications outside of the traditional industries where a compact, reliable connection system with environmental protection is required. The M5/M8/M12/M16/M23 connector system provides a future-proof interface that supports higher-bandwidth needs, meeting the requirements of up to 10GB/s. FREMI's M5/M8/M12/M16/M23 connector portfolio includes a full range of A, B, C, D, S, T and X-coded Y-coded(up to 10 Gigabit/s) versions to serve various application needs.
