Description

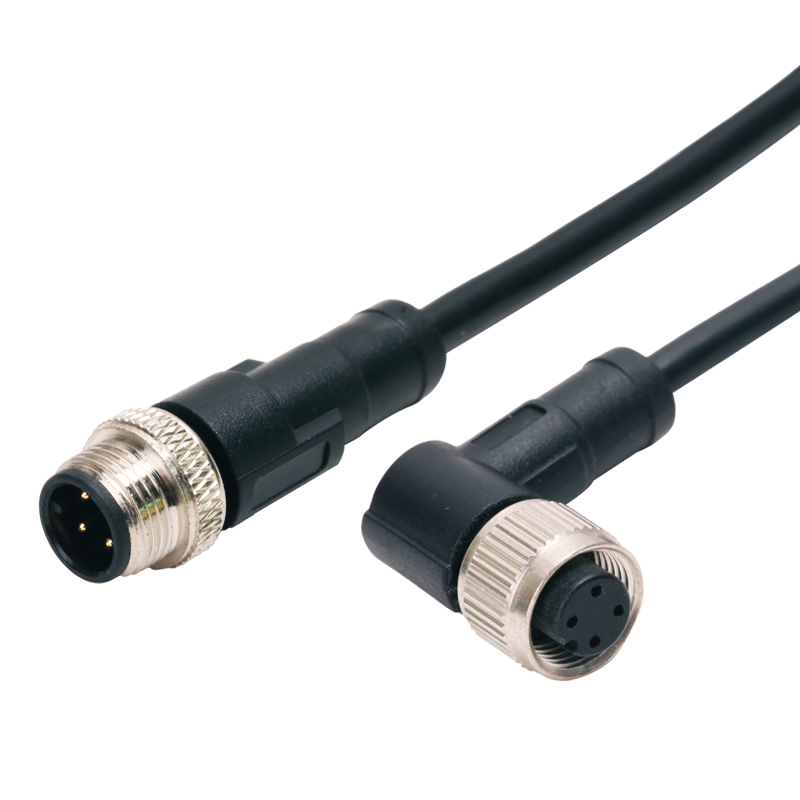

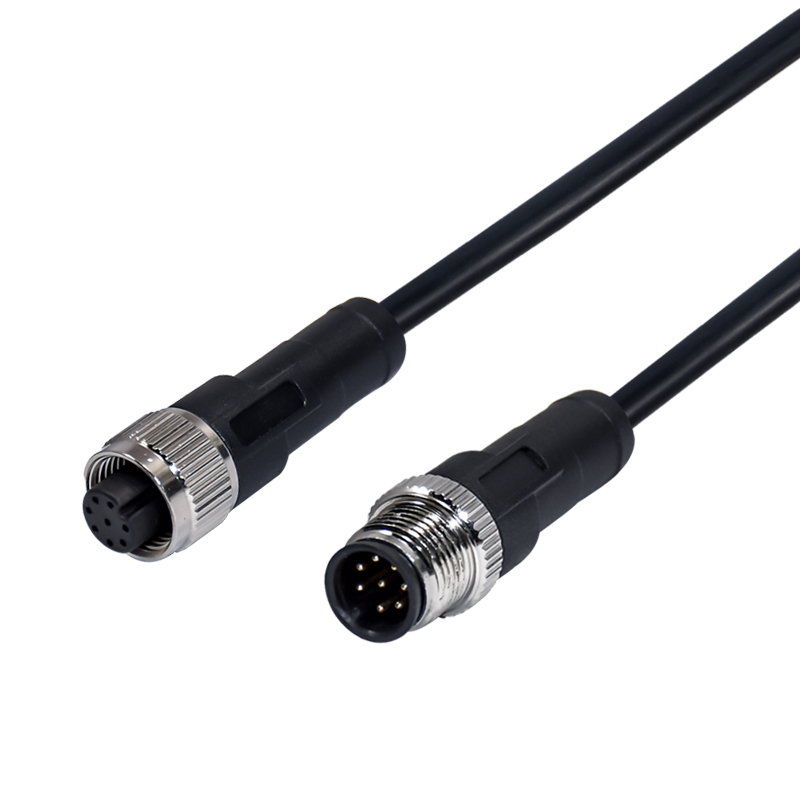

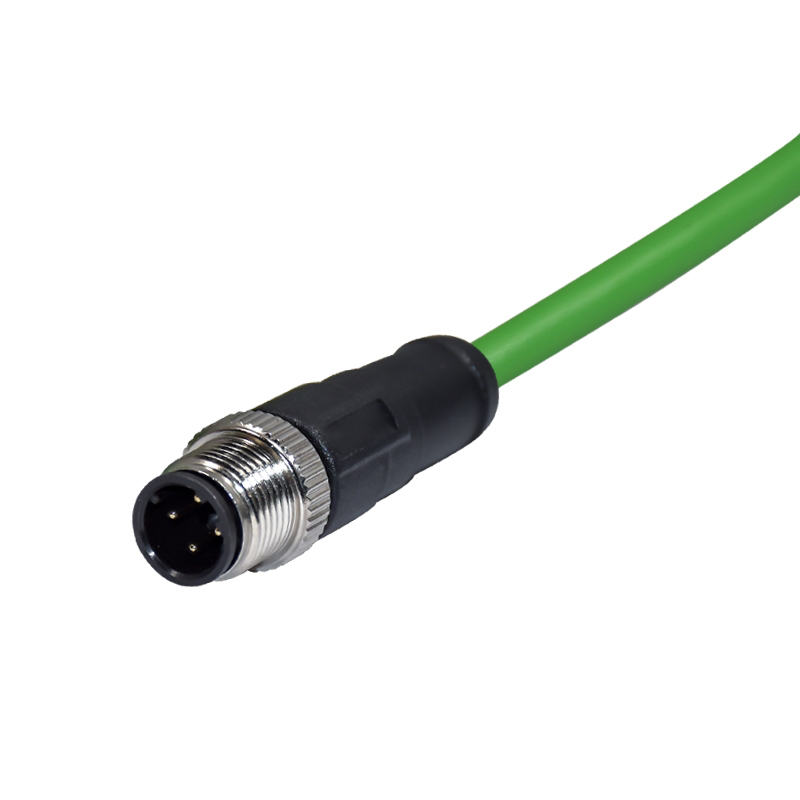

Waterproof m12 connector ip68 m8 m5 m16 m23 3 4 5 8 12 Pin extension cable
M12 waterproof connector includes a full range of A, B, C, D, S, T and X-coded
M12 waterproof connector includes a full range of A, B, C, D, S, T and X-coded
1.Shielded is available
2.IP67/IP68, RoHS, certification
3.Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17
4.Can be customized
2.IP67/IP68, RoHS, certification
3.Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17
4.Can be customized
| · X-coded connectors support higher bandwidth needs of up to 10Gb/s |
| · A,B,D,X,S,T coding available |
| · Easily installable connector system |
| · Connector ranges include male and female connectors in 2, 3, 4, 5, 8, 12 and 17 positions, and Y connectors |
| · Environment protection IP67 and IP68 |
| · Available with silver-plated contacts for higher conductivity |
| · Alternative mount arrangements for solder cup or PCB |
| · Shield reliable |
| · Quick and secure connection |
| · Backwards compatible |
● Reference standard: IEC 61076-2-101
● Termination: Soldering
● Rated temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
● Insulation resistance: ≥100MΩ
● Contact resistance: ≤5mΩ
● Over-molding: TPU
● Contact carrier: TPU+GF
● Screw nut: Brass, CNC, Nickel-plated
● Contact: Male: Brass, Female: Phosphor bronze
● Contacts plating: Au(Gold)
● O-ring: FKM, Silicon
● Protection degree: IP67, IP68
● Pollution degree: 3
● Wire length options: 0.5, 1, 2, 3, 5 meter or as your requests
● 360° Shielded or Un-Shielded versions are available
● Optional cable material: PVC, PUR, LSZH, Ethernet, Profinet
● IP67, IP68, IP69K and UL approvals
● All the connectors can be customized, please ontact us to get what you need~
