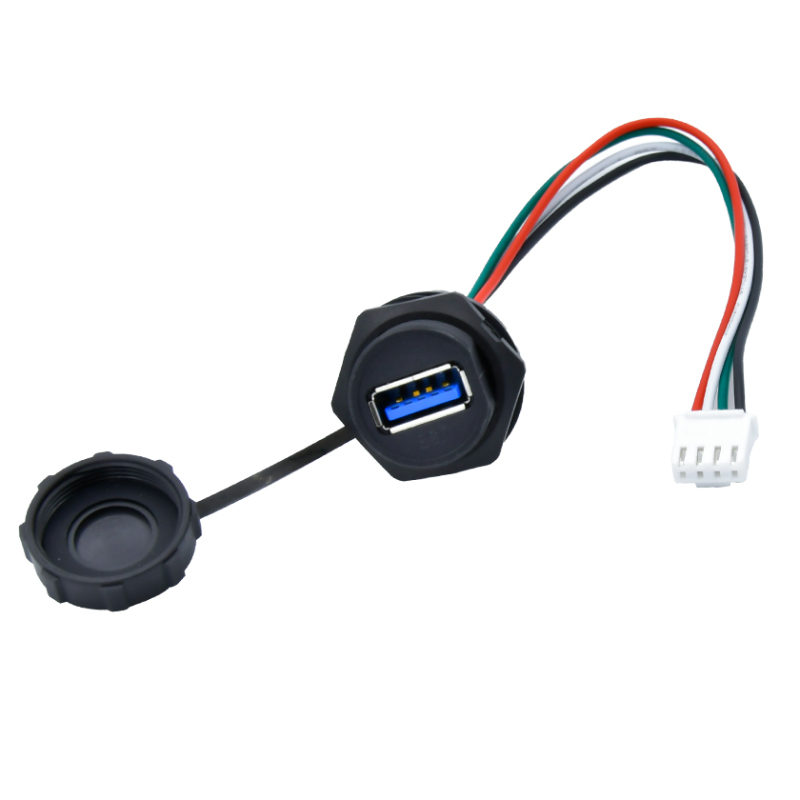

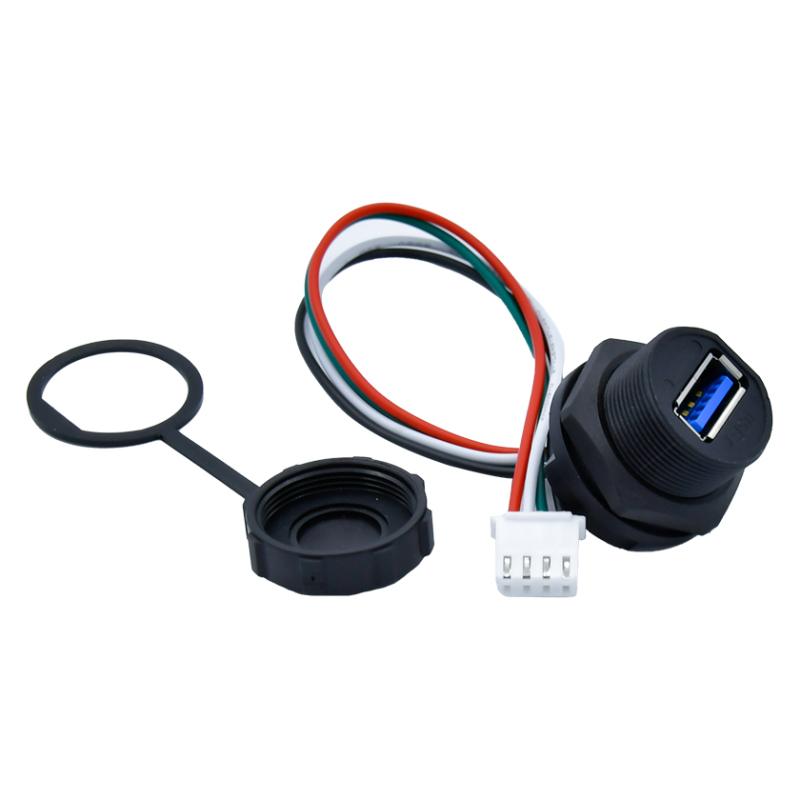

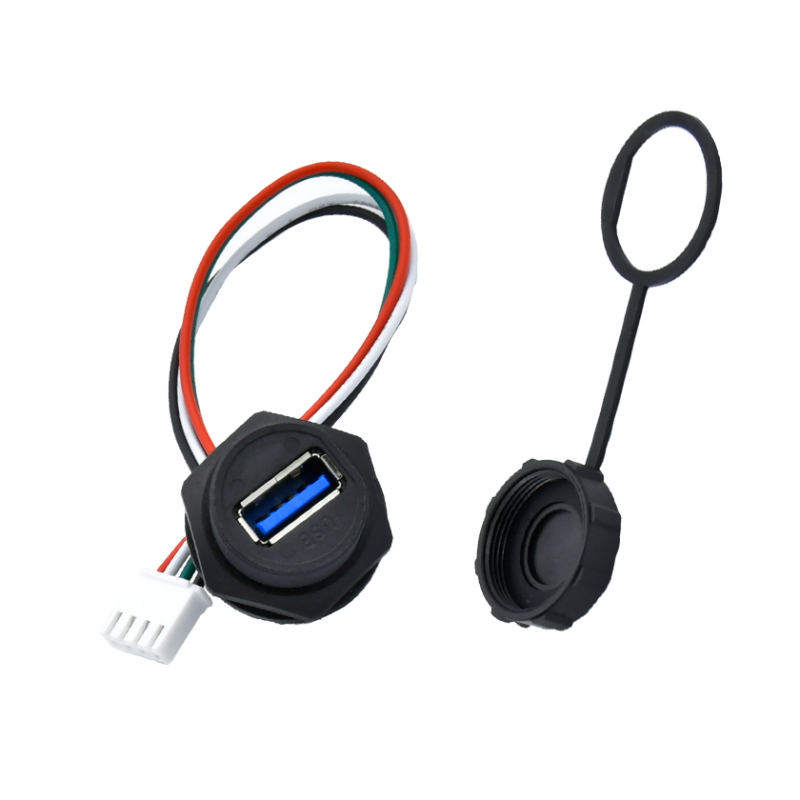

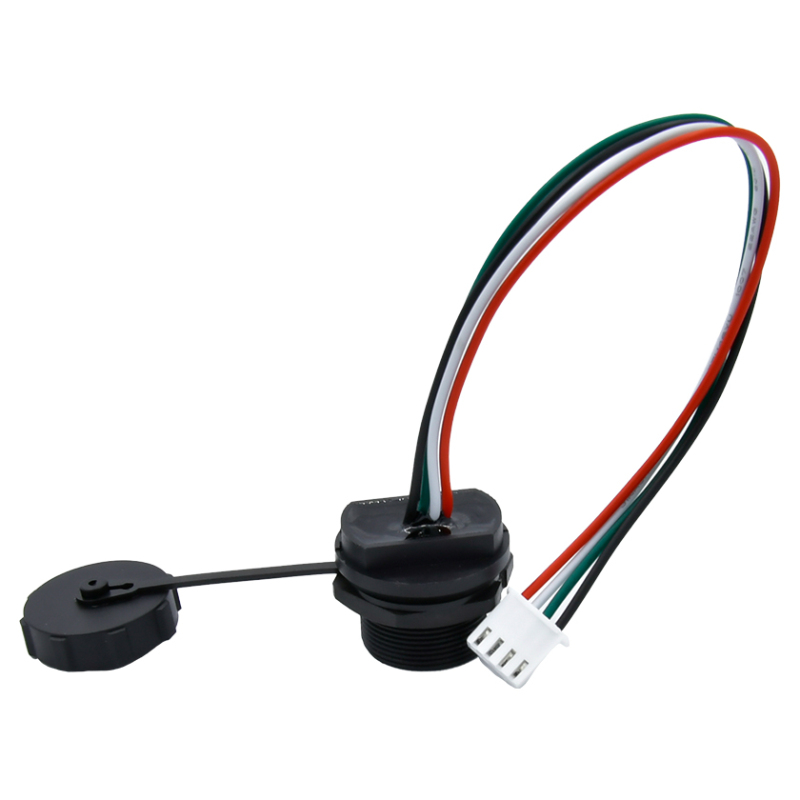

USB Waterproof Panel Mount Wall Connector ip67 4Pin 3.1 8Pin 3.0 USB Connector
Features:

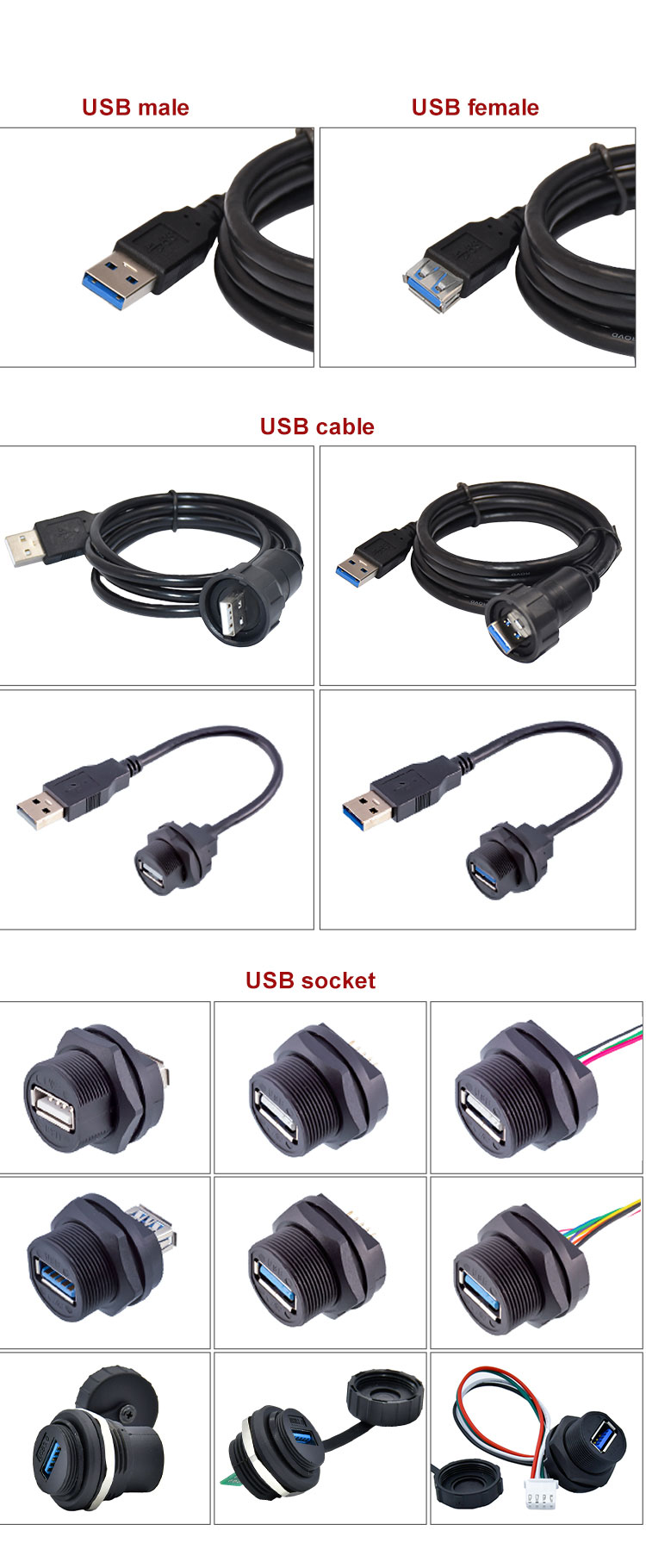

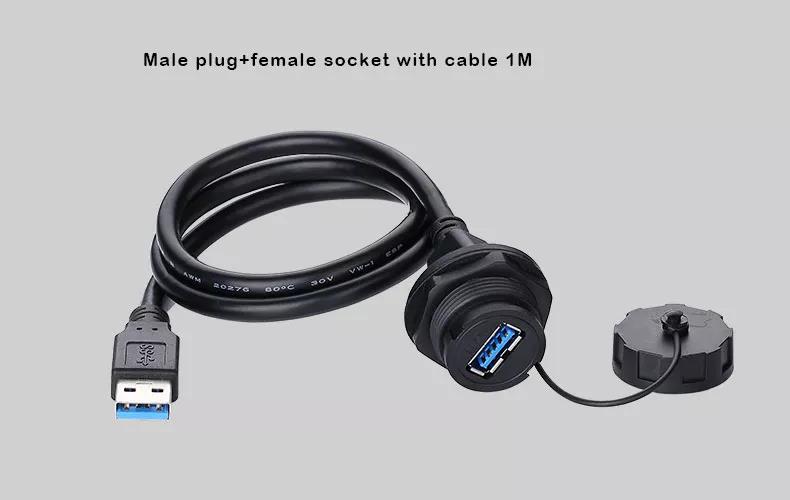

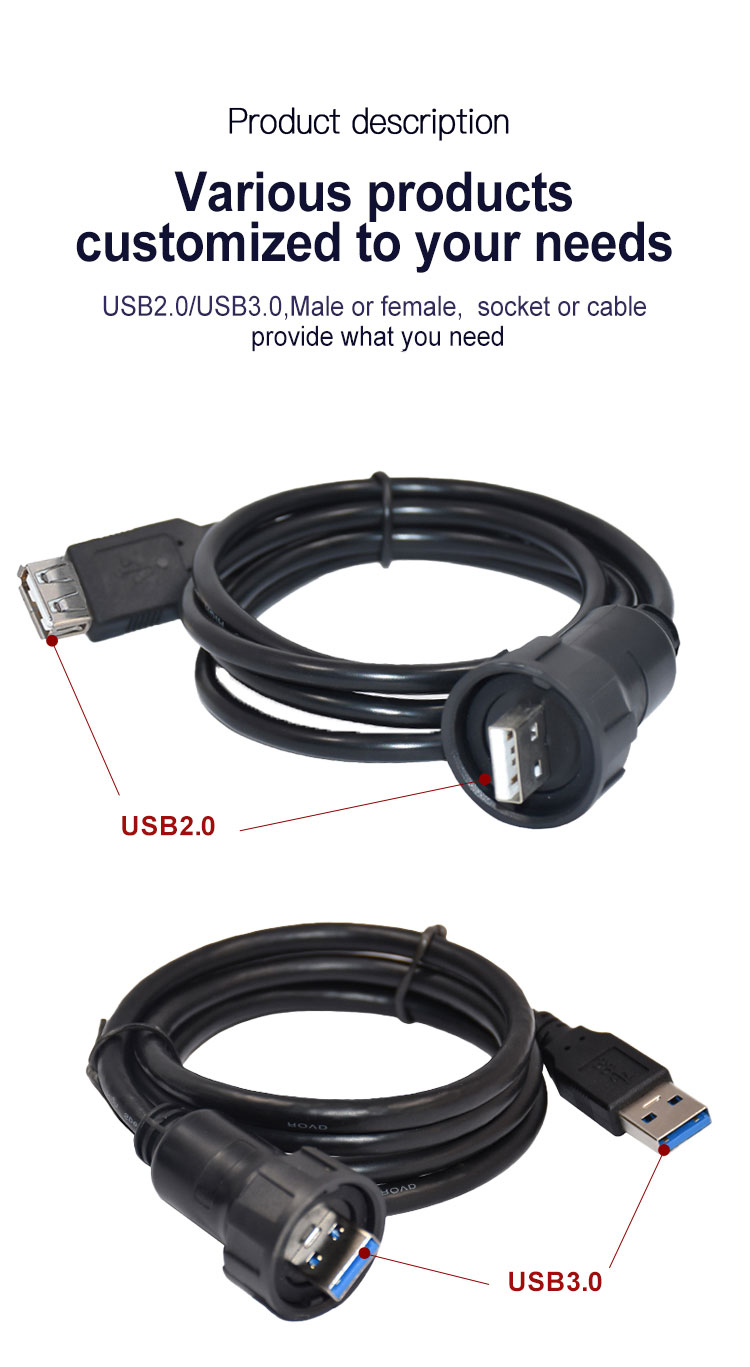

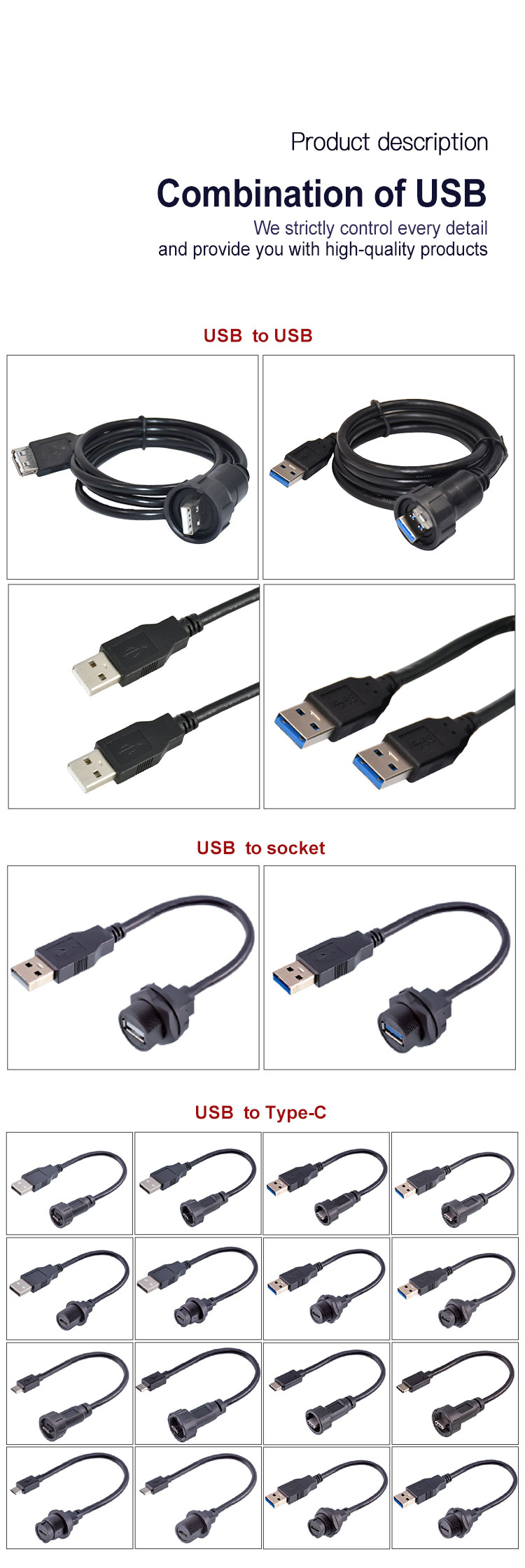

1. varies types, can achieve male &female conversion docking, independent female, male with cable, etc;
2. independent USB3.0 socket design, easy to install &operate;
3. compatible with USB2.0;
4. sheath of cable protect cable outlet;
5. Cable can be customized;
6. Solid connections system can provide the solutions for data transmission in harsh environments
7. protection level: IP67 Waterproof;
8. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to Hard Disk.
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ6.5mm |
| Current rating(A) | 1.5A |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
1. Are you a factory?
FM: Yes, we are a 100% factory. Fremi Technology Co., Ltd. was established in 2010, with a factory scale of 10000 + square meters and 300 employees.
2.Can you produce customized product orders? OEM or ODM orders?
FM: Sure. With 12+ years of OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.
3.Why choose Fremi? What makes your company a reliable supplier?
FM: since its establishment, ylinkworld has been committed to becoming the world's leading manufacturer of industrial connections. We have 20 injection molding machines, 80 CNC machines, 10 production lines and a series of testing equipment.
4.What certificates do your products have?
Our products are certified with UL/CE/IP67/IP68/IP69K/ROHS/REACH/ISO9001...,Our main markets include EU, North America, East Asia etc.
5.What's your regular production time after order is placed and confirmed?
FM: Generally speaking, the standard product lasts for 3 ~ 5 days. If the product is customized, the delivery period is about 10 ~ 12 days. If your project requires new tooling, the lead time depends on the complexity of the customized product.
6.What's your strength in logistics?
FM: international express, air or sea, we can provide you with cost saving suggestions. Transportation cost savings mean lower procurement costs. If you want to use our freight forwarder, China Import and export customs clearance can be managed by us. Enjoy your one-stop shopping experience at FREMI!
